the WOW! signal What was the strange 72-second signal from outer space?

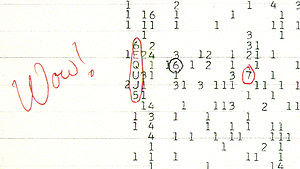

The Wow! signal was a strong narrowband radio signal detected by Jerry R. Ehman on August 15, 1977, while working on a SETI project at the Big Ear radio telescope of The Ohio State University then located at Ohio Wesleyan University's Perkins Observatory, Delaware, Ohio. The signal bore expected hallmarks of potential non-terrestrial and non-Solar System origin. It lasted for the full 72-second duration that Big Ear observed it, but has not been detected again. The signal has been the subject of significant media attention. Amazed at how closely the signal matched the expected signature of an interstellar signal in the antenna used, Ehman circled the signal on the computer printout and wrote the comment "Wow!" on its side. This comment became the name of the signal. The circled alphanumeric code 6EQUJ5 describes the intensity variation of the signal. A space denotes an intensity between 0 and 1, the numbers 1 to 9 denote the correspondingly numbered intensities (from 1.000 to 10.000), and intensities of 10.0 and above are denoted by a letter ('A' corresponds to intensities between 10.0 and 11.0, 'B' to 11.0 to 12.0, etc.). The value 'U' (an intensity between 30.0 and 31.0) was the highest detected by the radio telescope; on a linear scale it was over 30 times louder than normal deep space.[1] The intensity in this case is the unitless signal-to-noise ratio, where noise was averaged for that band over the previous few minutes.[2] Two different values for its frequency have been given: 1420.356 MHz (J. D. Kraus) and 1420.4556 MHz (J. R. Ehman). The frequency 1420 MHz is significant for SETI searchers because, it is reasoned, hydrogen is the most common element in the universe, and hydrogen resonates at about 1420 MHz, thus extraterrestrials might use that frequency on which to transmit a strong signal. The frequency of the Wow! signal matches very closely with the hydrogen line, which is at 1420.40575177 MHz. The two different values given for the frequency of the Wow! signal (1420.356 MHz and 1420.4556 MHz) are the same distance apart from the hydrogen line—the first being about 0.0498 MHz less than the hydrogen line, and the second being about 0.0498 MHz more than the hydrogen line. The bandwidth of the signal is less than 10 kHz (each column on the printout corresponds to a 10 kHz-wide channel; the signal is only present in one column). The location of the signal in the constellation Sagittarius, near the Chi Sagittarii star group. Because of the design of the experiment, the location may lie in either one of the two red bands, and there is also significant uncertainty in the declination (vertical axis). For clarity, the widths of the red bands are not drawn to scale; they should actually be narrower. The original print-out of the Wow! signal, complete with Jerry Ehman's famous exclamation, is preserved by the Ohio Historical Society. Location of the signal Determining a precise location in the sky was complicated by the fact that the Big Ear telescope used two feed horns to search for signals, each pointing to a slightly different direction in the sky following Earth's rotation; the Wow! signal was detected in one of the horns but not in the other, although the data was processed in such a way that it is impossible to determine in which of the two horns the signal entered. There are, therefore, two possible right ascension values: 19h22m24.64s ± 5s (positive horn) 19h25m17.01s ± 5s (negative horn) The declination was unambiguously determined to be −27°03′ ± 20′. The preceding values are all expressed in terms of the B1950.0 equinox. Converted into the J2000.0 equinox, the coordinates become RA= 19h25m31s ± 10s or 19h28m22s ± 10s and declination= −26°57′ ± 20′ This region of the sky lies in the constellation Sagittarius, roughly 2.5 degrees south of the fifth-magnitude star group Chi Sagittarii, and about 3.5 degrees south of the plane of the ecliptic. Tau Sagittarii is the closest easily visible star. Time variation Plot of signal strength vs time The Big Ear telescope was fixed and used the rotation of the Earth to scan the sky. At the speed of the Earth's rotation, and given the width of the Big Ear's observation "window", the Big Ear could observe any given point for just 72 seconds. A continuous extraterrestrial signal, therefore, would be expected to register for exactly 72 seconds, and the recorded intensity of that signal would show a gradual peaking for the first 36 seconds—until the signal reached the center of Big Ear's observation "window"— and then a gradual decrease. Therefore, both the length of the Wow! signal, 72 seconds, and the shape of the intensity graph may correspond to a possible extraterrestrial origin. print this page Print this page Sumber : http://en.wikipedia.org/wiki/Wow!_signal
